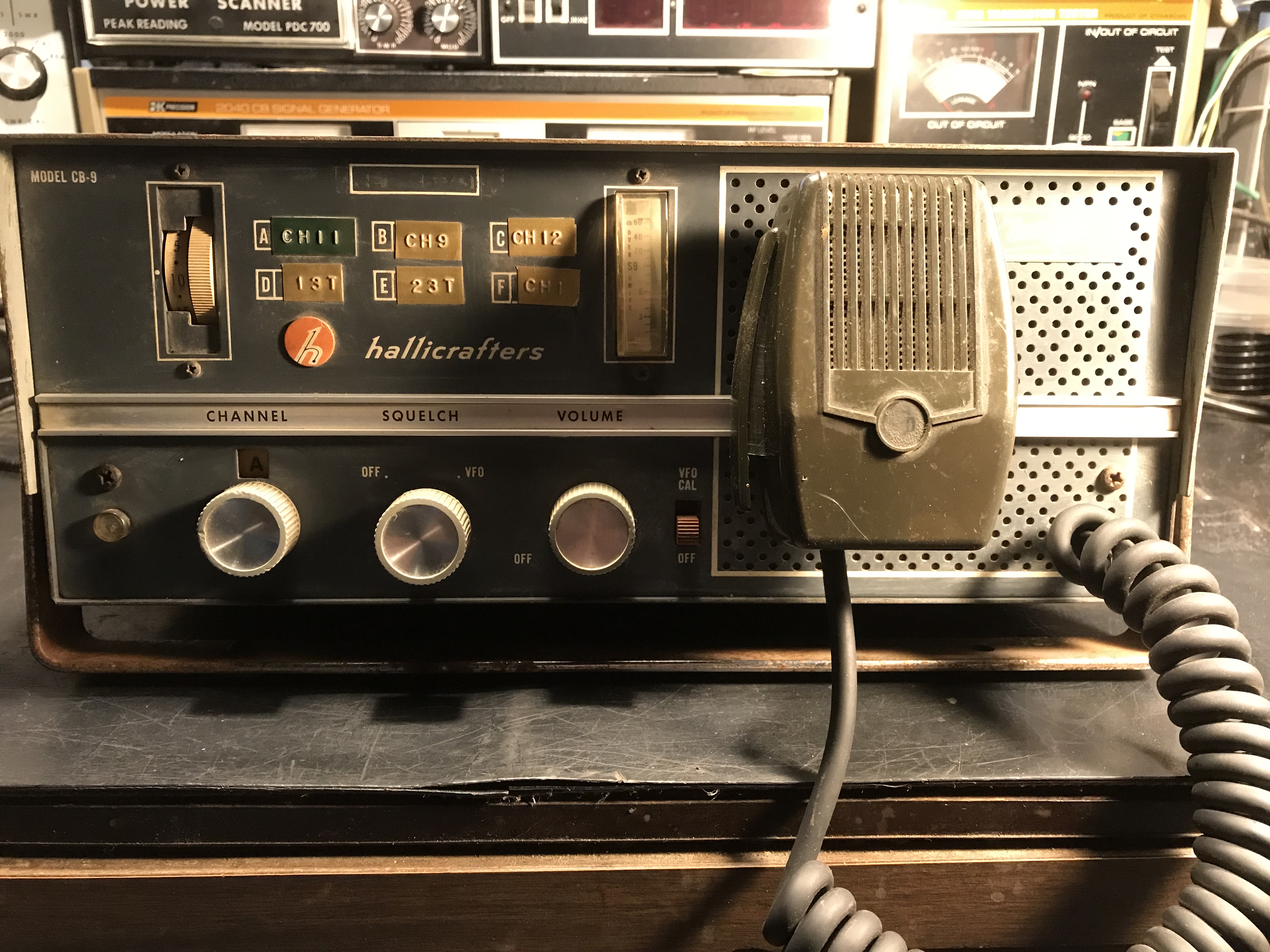

Make
Hallicrafters
Model
CB-9
Year
1965
RX Channels
6, with continuously tunable receiver
TX Channels
6
Power Input
6VDC, 115VAC
Sams #
CB-8, page 30
notes
Similar to the CB-7 w/ different panel layout
Tube Complement
| v1 | RF Amp |
12AU6 |
| v2 | Converter |
12BE6 |
| v3 | 1st IF Amp |
12BA6 |
| v4 | 2nd IF Amp - 1st Speech Amp |
6BL8 |
| v5 | Squelch Gate - Rec Mute - AF Amp |
6BN8 |
| v6 | Output - Modulator - 2nd Speech Amp |
6GW8 |
| v7 | Trans Osc - Final Amp |
6CX8 |
