Make
Global Specialties
Model
PB-503A
Overview
The Global Specialties PB-503A is an enhanced version of the PB-503 electronics trainer, designed for analog and digital circuit development, testing, and education. It integrates multiple laboratory functions into a single bench-top unit, supporting hands-on learning and rapid circuit prototyping.
Technical Specifications
| Category | Details |
|---|---|
| Model | PB-503A |
| Manufacturer | Global Specialties |
| Product Type | Electronics trainer / prototyping system |
| Breadboard | Solderless breadboard (high tie-point count) |
| DC Power Supply | Fixed outputs (commonly +5V) and variable outputs |
| AC Power Output | Low-voltage AC output available |
| Function Generator | Sine, square, and triangle waveforms |
| Frequency Range | Variable (audio to low RF range, model dependent) |
| Clock Generator | TTL-compatible pulse/clock source |
| Logic Indicators | LED indicators for digital signal monitoring |
| Logic Switches | Multiple manual input switches |
| Output Indicators | LED display array |
| Terminals | Binding posts and breadboard connections |
| Power Source | AC mains powered |
Physical Description

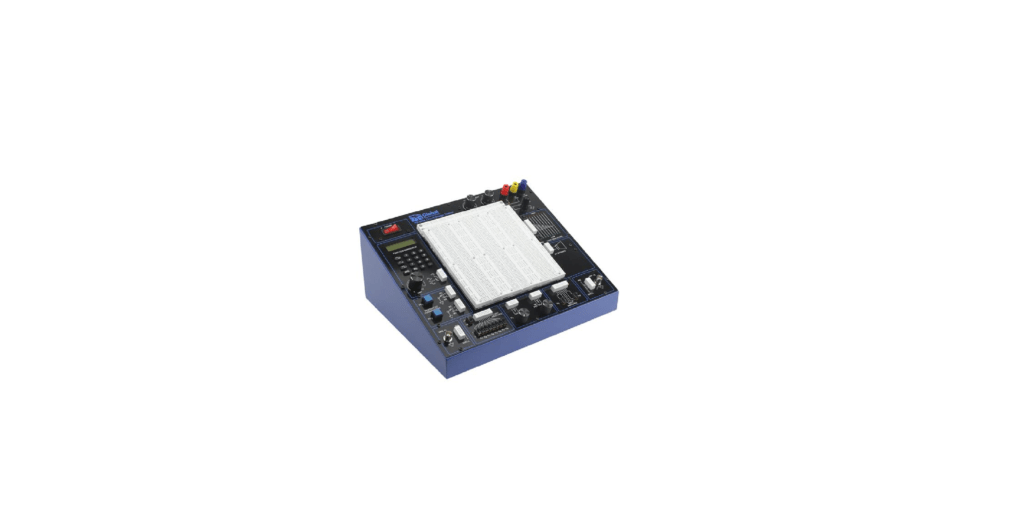

The PB-503A features a sloped front panel with an integrated solderless breadboard occupying the upper portion. The lower control panel contains clearly labeled sections for power supplies, waveform generation, logic switches, and indicators.
The layout is organized to allow quick access to all functions, with color-coded terminals and grouped controls to simplify circuit setup. The enclosure is designed for bench use in classroom or lab environments.
History
The PB-503A was introduced as a refinement of the earlier PB-503 trainer, adding expanded functionality and improved usability for electronics education.
It became widely used in vocational schools, colleges, and training programs for teaching digital logic, analog circuits, and basic electronics principles. The inclusion of a function generator and multiple power options made it suitable for a broader range of experiments compared to earlier trainer models.
The PB-503A continued Global Specialties’ approach of combining essential lab instruments into a single integrated platform, supporting both instructional use and individual experimentation.
