Overview

The Heathkit HN-31 Cantenna is a 50-ohm dummy load designed for testing and tuning radio transmitters without radiating a signal. It allows operators to safely key transmitters into a non-radiating load while measuring output power and performing adjustments. The unit became widely used by amateur radio operators and CB enthusiasts due to its simplicity, durability, and ability to handle moderate RF power levels.

Technical Specifications

Physical Description

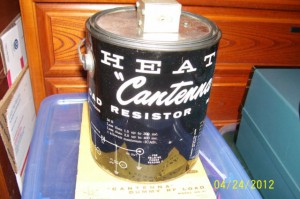

The HN-31 consists of a cylindrical metal can filled with insulating oil, which serves as a heat-dissipating medium for the internal resistive element. The exterior typically features a simple labeled finish with a top-mounted SO-239 connector. The internal resistor is fully submerged in oil to improve heat dissipation and maintain stable impedance during operation.

The design is compact and rugged, intended for bench use. The unit has no controls or indicators, reflecting its single-purpose function as a passive load device.

History

The Heathkit Cantenna was introduced as part of the company’s line of practical test accessories for radio operators. It became one of the most recognizable Heathkit products due to its distinctive oil-filled can design and reliability.

The HN-31 was marketed during a period when CB and amateur radio activity were high, providing an affordable solution for transmitter testing. Its design remained largely unchanged over time, and similar dummy loads from other manufacturers followed the same basic concept.

The term “Cantenna” became closely associated with this style of dummy load and is still commonly used to describe similar devices. The HN-31 remains a well-known and frequently used piece of vintage test equipment.
