Polytronics Poly-Comm N

Make

Polytronics

Model

Poly-Comm PC-N

Poly-Comm PC-N-6

Poly-Comm PC-N-12

Year

~1963

Orig Price

$189.50 (1963)

Description

4 channel crystal controlled citizens band transceiver with Nuvistor rf stage. 17 tube extra rugged, performance.

Channels

4

Power Input

6VDC, 115 VAC (PC-N-6)

12VDC, 115 VAC (PC-N-12)

Sams #

CB-3, page 135

Tube Complement

v1 RF Amplifier

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6ds4'

6DS4

v2 1st Mixer - Oscillator

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-12at7'

12AT7

v3 2nd Mixer - Oscillator

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-12at7'

12AT7

v4 1st IF Amplifier

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6bj6'

6BJ6

v5 2nd IF Amplifier

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6bh6'

6BH6

v6 3rd IF Amplifier

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6bh6'

6BH6

v7 Speech Amp

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6av6'

6AV6

v8 AF Amp - Squelch

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-12ax7a'

12AX7A

v9 Output - Modulator

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6bq5'

6BQ5

v10 Trans Osc - Tripler

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-12bh7a'

12BH7A

v11 Final Amplifier

WordPress database error: [Table 'acglydrh_otrwp23.wp_posts' doesn't exist]
SELECT post_title FROM wp_posts WHERE post_name = 'tube-6bq5'

6BQ5

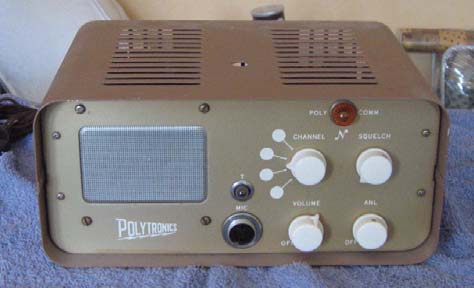

Polytronics Poly-Comm PC-N
