Make
Yaesu
Model
FT-817
Overview
The Yaesu FT-817 is a compact, all-mode, all-band transceiver designed for portable and low-power (QRP) operation. Introduced in the early 2000s, it covers HF, VHF, and UHF bands in a self-contained unit powered by internal batteries or an external DC supply. The FT-817 became widely recognized for its versatility in field use, including portable, mobile, and emergency communications.
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Coverage | 160–10 meters (HF), 6 meters, 2 meters, 70 centimeters |
| Modes | SSB, CW, AM, FM, Digital (via external interface) |
| Power Output | Up to 5 watts (QRP) |
| Frequency Control | PLL synthesized |
| Power Requirements | 9.6 V DC (internal battery pack or external supply) |
| Antenna Connector | BNC (front panel) |
| Audio Output | Internal speaker |
| Display | Backlit LCD |
Physical Description

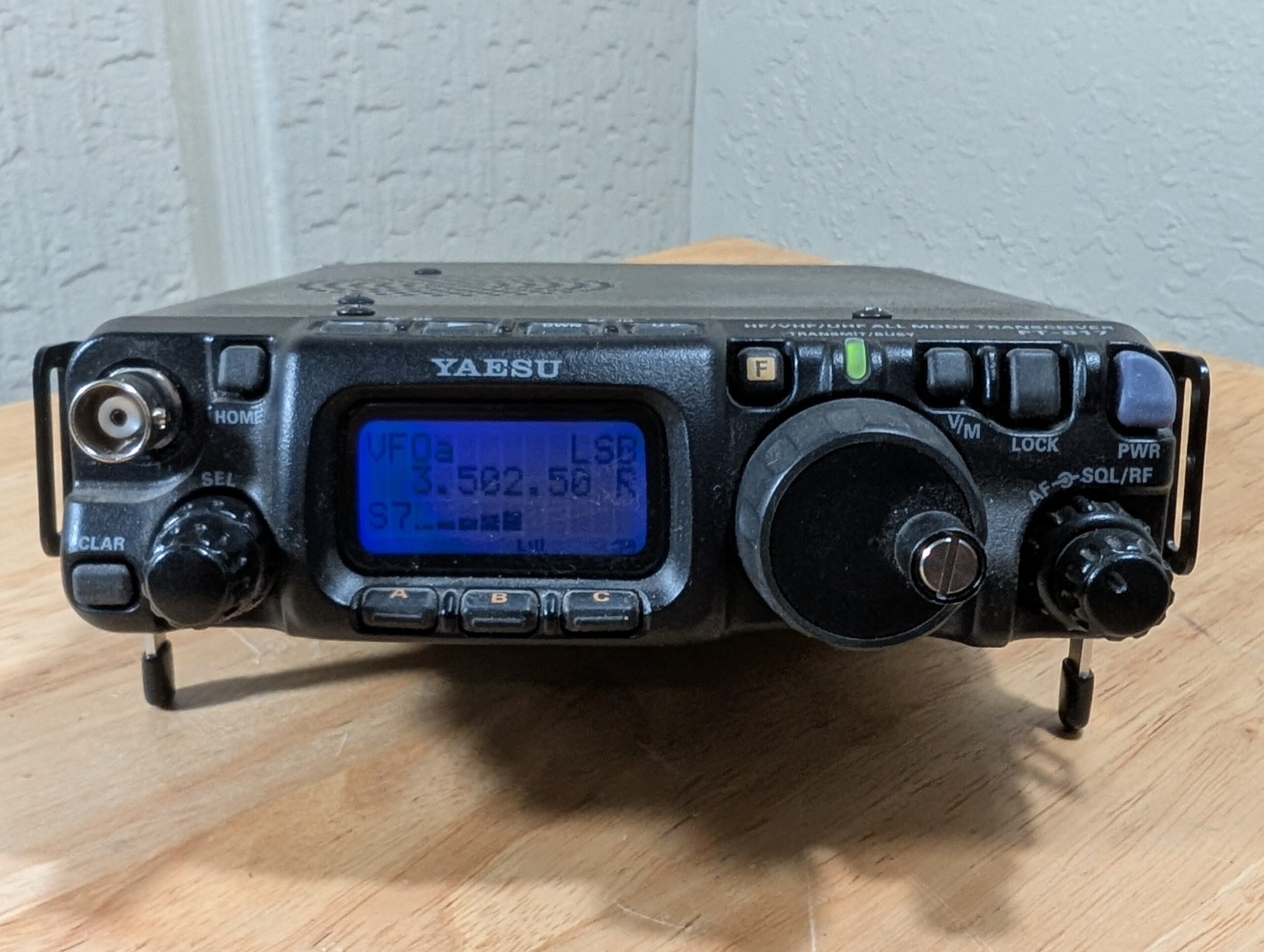

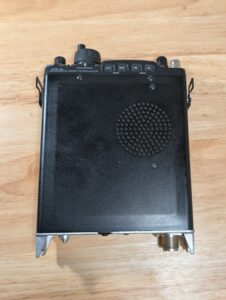

The FT-817 features a compact rectangular chassis with a front-panel LCD display and multi-function controls. A BNC antenna connector is mounted on the front for quick portable setup. The unit includes a built-in speaker and a removable battery pack compartment. Its small size and rugged construction make it suitable for field and backpack operation.
History
The FT-817 was introduced by Yaesu around 2001 as one of the first widely available all-band, all-mode portable QRP transceivers. It was designed to provide full-featured HF through UHF capability in a compact form factor. The radio gained popularity among amateur radio operators for portable operations such as field days and low-power experimentation.
An updated version, the FT-817ND, was later released with improvements including a higher-capacity battery and minor internal updates, while maintaining the same overall design and functionality.
References
- https://www.yaesu.com/
- https://www.rigpix.com/yaesu/ft817.htm
- https://www.universal-radio.com/catalog/hamhf/0817.html
